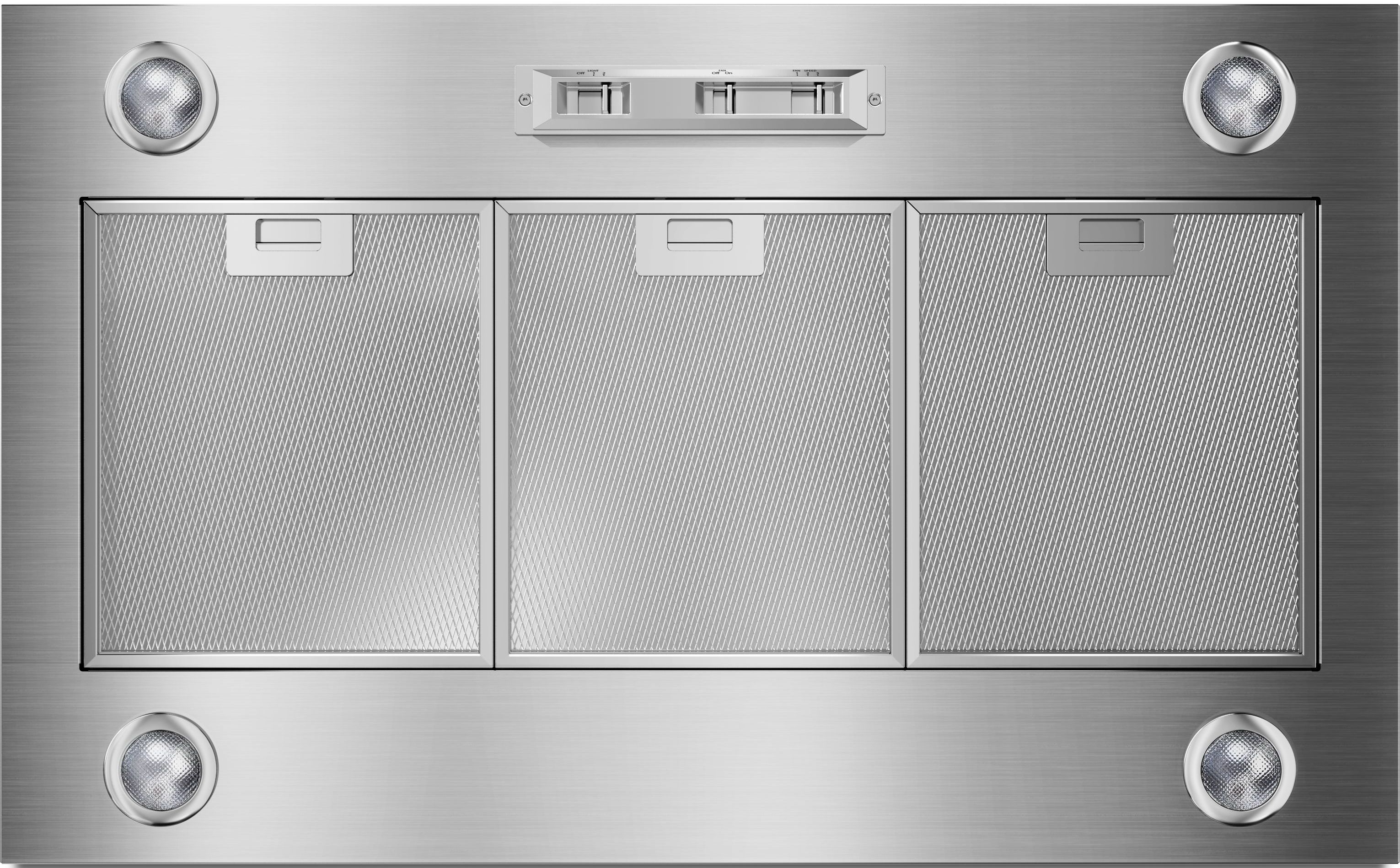

Amana® 35.88" Stainless Steel Custom Hood Liner


Model #:

UXL6036YSS

Model #: UXL6036YSS
268106
Amana
$99,999.00

At a Glance

This custom hood liner features a hidden ventilation system mounted to the inside of a custom vent cover (which can be made of metal, wood, plaster or tile), offering a uniquely streamlined look. It also offers you a choice of motors for different levels of ventilation power.Read More

Request a Quote

View Delivery & Pickup Options
Add Zip Code
Test-18AUG-CCC 90
AltaAILogo

Ask about this product?

Get a quick answer from AI!

This content was generated using AI from manufacturer content. To verify or get additional information, please contact customer service

Get to know this product.

Product Overview

Product Overview

600 or 1,200 CFM Internal or In-Line Blower (Sold Separately)

The single or dual centrifugal blower motor design allows you to choose two levels of ventilation performance. 600 CFM offers a high level of power, while 1,200 CFM is exceptionally powerful, designed to meet the demands of high-heat gas burners and capture even the most persistent and cooking odors.

Compatible with Cooking Surfaces up to 108,000 BTUs

This luxury custom hood liner is designed to withstand high heat outputs of up to 108,000 BTUs.

Four Halogen Lights with Night-Light Setting

Twice as energy efficient and long lasting as incandescent light bulbs, these halogen lights beautifully illuminate the cooking surface from above. They include a “dim” setting that can serve as a low-level light when the hood is not in use.

Dishwasher-Safe Premium Mesh Filters

These premium mesh filters, which effectively capture smoke, grease and cooking odors as they’re drawn through the hood, can be easily cleaned in the dishwasher.

10-Inch Round Exterior Venting

Large-diameter venting that enables quiet airflow for efficient performance.

Three Fan Speed Settings

Three different settings on this luxury custom hood liner allow you to control the ventilation level for optimum performance and energy efficiency.

Hidden Slide Controls

Thanks to concealed slide controls, this custom hood liner’s exterior is sleekly minimal, allowing you to achieve a more understated look.

Auto On (Heat Sensor) Feature

The intuitive auto on (heat sensor) feature protects against high temperatures. When excessive amounts of heat are detected, the sensor activates to increase to the maximum setting, and turns off when temperatures subside.

Useful Documents
Specifications

General Specs

Height (in.)11.5
Duct Size (in.)10
Depth (in.)22
ColorStainless Steel
Manufacturer Warranty1 Year
PositioningStationary
Color Finish NameStainless Steel
Range Hood TypeInsert
ENERGY STAR CertifiedNo
Maximum CFM1200

Details

Task Light Type:Halogen
Number of Night Light Settings:2
Night Light Type:Halogen
Task Lighting:Yes
Night Light:Yes
Number of Task Light Settings:2

Configuration and Overview

Width:35.88"
Size:36"
Hood Type:Custom Hood Liners

Ventilation System

Filters:Dishwasher-Safe Grease Filters
Duct Outlet Size:10
Duct Direction:Vertical
Duct Type:Round
Number of Speeds:3
