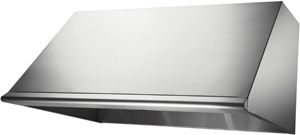

Electrolux ICON Professional Series 36" Wall Ventilation-Stainless Steel

Electrolux Icon

Model #:

E368WV60ES

At a Glance

Product Dimensions 18"h x 35.88"w x 26.88"d

Electrolux ICON Professional Series 36" Wall Ventilation-Stainless Steel with 600 CFM internal blower, halogen lighting and external exhaust ductRead More

Request a Quote

View Delivery & Pickup OptionsAdd ZIP Code

Test-18AUG-CCC 90

Get to know this product.

Product Overview

Product Overview

Dual Centrifugal Fans

  • Move air quietly and quickly — up to 600 cu. ft. of air per minute.

Halogen Lighting

  • Two halogen lights with dimmer controls provide bright illumination of the cooktop surface.

Stainless Steel Filters

  • Dishwasher−safe for easy cleaning.

Infinite Speed Blower Control

  • Ultra quiet blower gives you precise control over airflow.
Useful Documents
Product Manual
Specification Sheet
Installation Instructions
Specifications

General Specs

Width (in.)35.88
Height (in.)18
Duct Size (in.)8
Depth (in.)26.88
ColorStainless Steel
PositioningStationary
Color Finish NameStainless Steel
Product Weight (lbs.)64
Appliance Fit Width (in.)36
Maximum CFM600
Voltage120
Amp15/20
Frequency60

Construction

Exhaust:Ducted
Chimney:Fixed
Ductwork Type:Vertical and Horizontal

Dimensions

Shipping Weight:76
Min Chimney Height:27
Max Height Above Cooktop:30

Display

Controls:Mechanical

General Features

Cleanability:Washable Filters
Pollutant Removal:Externally Vented

Other

Considerations:Ducted fans must always be vented outdoors.
Air Mover Type(s):Centrifugal
Air Mover(s) Speed:Infinite
