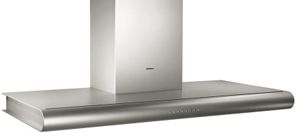

Gaggenau 48" Stainless Steel Wall Mounted Range Hood

The AW 280 boasts Gaggenau's exclusive Coanda ventilation technology. The unique shape creates an additional air current along its front edge. This air current traps rising condensation before it has a chance to escape over the edge of the appliance and drives it straight into the inlet. Like the Al 280 island solution, the AW 280 delivers a level of performance in normal mode that conventional systems achieve only when running at maximum speed.

Main Facts

• Coanda effect leads to highly efficient extraction, even on lowest power level
• Reduced energy consumption and less noise
• Air extraction or recirculation system
• Dimmable Soft-Light

Output

• Max. air output 660 m³/h with DN 150 unobstructed air flow, additionally 80 m³/h Coanda effect.
• Max. air output according to DIN EN 61591:
• Air extraction 600 m³/h, additionally 80 m³/h Coanda effect.
• Air recirculation 300 m³/h, additionally 100m³/h Coanda effect.
• Sound pressure level with DN 150:
• Air recirculation 47 dB(A).
• Sound power level according to DIN EN 60704 with DN 150: Air extraction 61 dB (re 1 pW). 25.56Air recirculation 70 dB (re 1 pW).

Additional Features

• 3 electronically controlled output levels
• Intensive mode with ongoing Coanda effect
• Interval ventilation
• Delayed shut-off function
• Grease filter saturation indication by flashing light
• Cartridge-type filter, dishwasher-safe
• Fully illuminated surface with compact fluorescent tube 2 x 36 W and dimmable Soft-Light

Specifications
