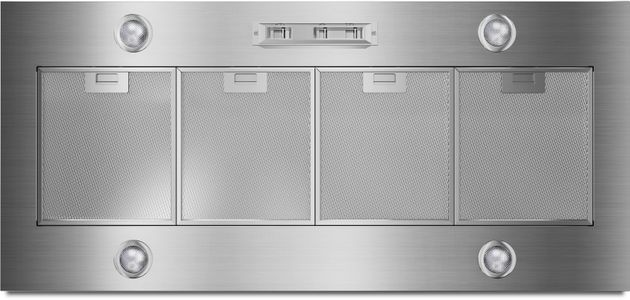

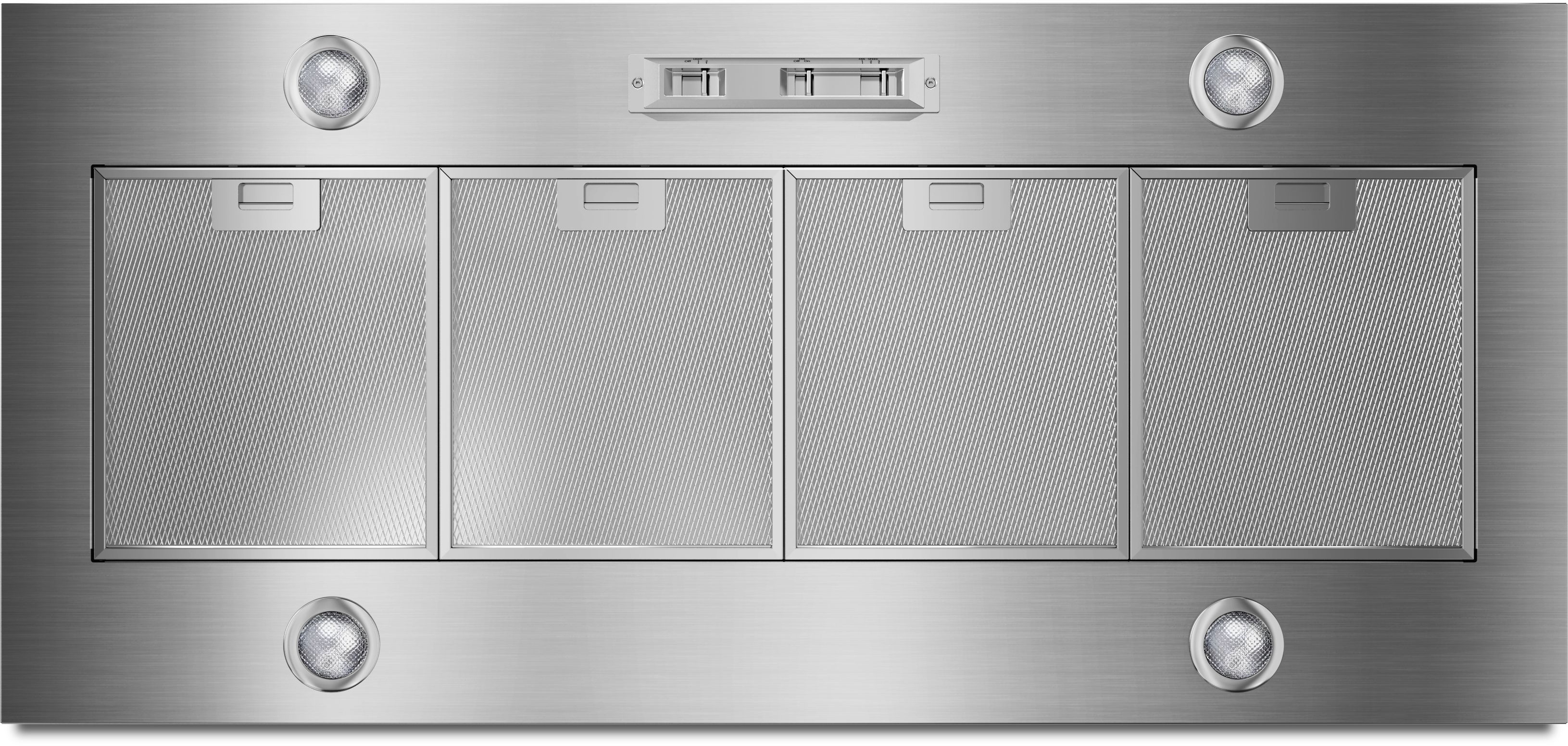

KitchenAid® 47.88" Stainless Steel Custom Hood Liner

KitchenAid

Model #:

UXL6048YSS-KA

At a Glance

Product Dimensions 11.5"h x 47.88"w x 22"d

This custom hood liner features a hidden ventilation system mounted to the inside of a custom vent cover (which can be made of metal, wood, plaster or tile), offering a uniquely streamlined look. Designed to work with larger cooking appliances, it also offers you a choice of motors for different levels of ventilation power.Read More

Request a Quote

View Delivery & Pickup OptionsAdd ZIP Code

GQA17MAR_EN 80
Test-17Aug|protest1 34
Test-18AUG-CCC 90

People also viewed:

Get to know this product.

Product Overview

Product Overview

600 or 1,200 CFM Internal or In-Line Blower (Sold Separately)

The single or dual centrifugal blower motor design allows you to choose two levels of ventilation performance. 600 CFM offers a high level of power, while 1,200 CFM is exceptionally powerful, designed to meet the demands of high-heat gas burners and capture even the most persistent and cooking odors.

Compatible with Cooking Surfaces up to 65K BTUs

This luxury custom hood liner is designed to withstand high heat outputs of up to 65K BTUs.

Useful Documents
Installation Instructions and User Care Guide
Warranty
Dimension Guide
Ventilation Pairing Chart
Manual
Specifications

General Specs

Width (in.)47.88
Height (in.)11.5
Duct Size (in.)10
Depth (in.)22
ColorStainless Steel
PositioningStationary
Color Finish NameStainless Steel
Product Weight (lbs.)66.5
Appliance Fit Width (in.)48
Maximum CFM1200

Details

Number of Night Light Settings 1
Task Lighting Yes
Night Light Yes
Number of Task Light Settings 2

Dimensions

Width 47-7/8 in

Ventilation System

Filters Dishwasher-Safe Grease Filters
Blower Type Centrifugal
Duct Direction Vertical
Duct Type Round
Number of Speeds 3
