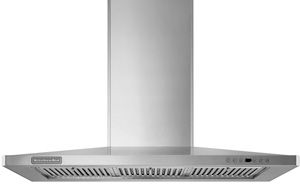

KitchenAid Architect Series II 36" Wall-Mount Canopy Hood

KitchenAid

Model #:

KWCU465SSS

At a Glance

KitchenAid Architect Series II 36" Wall-Mount Canopy HoodRead More

Request a Quote

View Delivery & Pickup OptionsAdd ZIP Code

GQA17MAR_EN 80
Test-17Aug|protest1 71
Test-18AUG-CCC 90

Get to know this product.

Product Overview

Product Overview

  • 600 CFM Pro Motor with 6" Round Duct
  • Slim Canopy Profile
  • 4-Speed Electronic Touch Controls
  • Dual Halogen Lighting
  • Heavy-Duty Baffle Filters (Dishwasher Safe)
  • Fully Adjustable Mounting System
  • Seamless Canopy Design with Beveled Edges
  • Convertible to Recirculating (Ductless Installation)
  • Chimney Extension Kits
Specifications

General Specs

Duct Size (in.)6
ColorStainless Steel
PositioningStationary
Color Finish NameStainless Steel
Maximum CFM600

Construction

Exhaust:Convertible
Chimney:Fixed
Ductwork Type:Vertical

Dimensions

Depth, Chimney :12.0625
Min Chimney Height:26.38
Max Height Above Cooktop:36
Min Height Above Cooktop:24

General Features

Cleanability:Dishwasher Safe Grease Filters
Pollutant Removal:Externally Vented, Charcoal Filter

Other

Watts:20
Considerations:For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
Number of Lights:4
Settings:2
Air Mover Type(s):Pro Motor
Air Mover(s) Speed:4
Number of Air Movers:1
Sones (Noise Level) Rating:6
