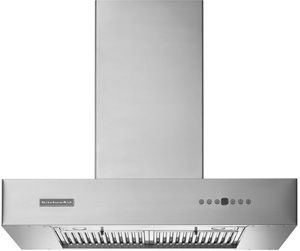

KitchenAid® 30" Wall-Mount Canopy Hood


Model #:

KWCU505WSS

At a Glance

KitchenAid® 30" Wall-Mount Canopy HoodRead More

Request a Quote

View Delivery & Pickup OptionsAdd ZIP Code

Test-18AUG-CCC 90

Get to know this product.

Product Overview

Product Overview

  • 600 CFM Pro Motor ensures reliable performance to handle the requirements of high-power gas burners
  • 4-speed electronic push-button controls include an LCD screen for easy viewing of selections
  • Halogen cooktop lights provide increased visibility with brighter, natural light
  • 10-minute boost function can be started at the touch of a button and allows for extra ventilation when needed
  • Dishwasher-safe heavy-duty baffle filters remove grease and odors as they're drawn through the hood
  • Optional recirculating vent systems draw air in through a charcoal filter and return fresh air to the kitchen (part number W10271501)
  • Optional chimney extension kit is available for use with high ceilings (part number W10271503)
Specifications

General Specs

Duct Size (in.)6
ColorStainless Steel
PositioningStationary
Color Finish NameStainless Steel
Maximum CFM600

Construction

Exhaust:Ducted
Chimney:Adjustable
Ductwork Type:Vertical

Dimensions

Depth, Chimney :10.25
Min Chimney Height:25.63
Max Height Above Cooktop:36
Min Height Above Cooktop:30

General Features

Cleanability:Dishwasher Safe Grease Filters
Pollutant Removal:Externally Vented

Other

Watts:20
Considerations:To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control device.
Number of Lights:2
Settings:2
Air Mover Type(s):Dual Pro Motor
Air Mover(s) Speed:4
Number of Air Movers:1
Sones (Noise Level) Rating:9.2
