Product Dimensions 36"h x 23.63"w x 19.63"d

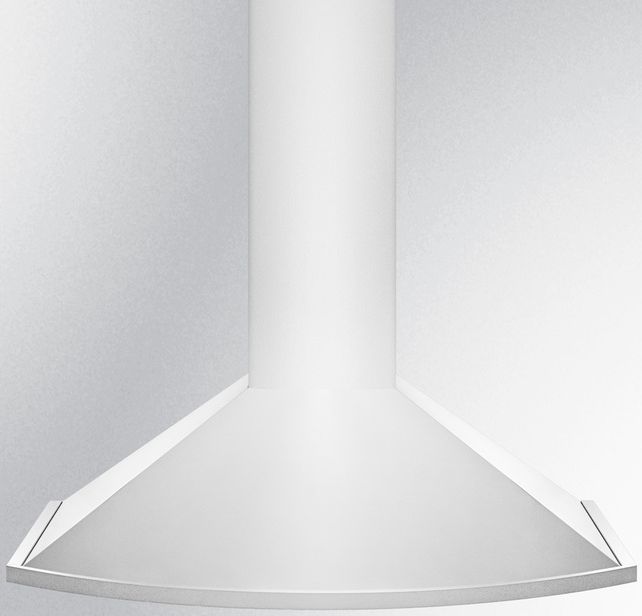

Made in Europe, the SEH2624ADA is a 24" wide range hood with a 500 CFM blower. Constructed entirely from stainless steel, it features an adjustable chimney and two aluminum cassette filters with a wide filtration area.Read More
ADA compliant design allows you to control the hood from a wall light switch for easier accessibility
Designed and manufactured in Europe
Elegant style in brushed stainless steel
500 CFM blower preinstalled
Adjustable chimney height offers flexible sizing
Large filtration area with dishwasher safe aluminum cassette filters
Ships in one box
Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines. Made in Europe, the SEH2624ADA is a 24" wide range hood with a 500 CFM blower. Constructed entirely from stainless steel, it features an adjustable chimney and two aluminum cassette filters with a wide filtration area. Two halogen light bulbs are pre-installed, offering an elegant illumination of your range. The SEH2624ADA comes with a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The 3-speed fan and 15 minute timer are operated from an easy-to-use slider control panel. This wall-mounted range hood is designed for ducted use, but may be converted to a ductless (recirculating) range hood when you order an optional charcoal filter set (SEHCF). This model is manufactured in Europe and ships in one box. Additional ADA compliant wall-mounted and under cabinet range hoods are available in a variety of sizes and styles. Browse our website for more choices.
General Specs | |
| Width (in.) | 23.63 |
| Height (in.) | 36 |
| Duct Size (in.) | 6 |
| Depth (in.) | 19.63 |
| Color | Stainless Steel |
| Positioning | Stationary |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Wall Mounted |
| ENERGY STAR Certified | No |
| Product Weight (lbs.) | 31 |
| Appliance Fit Width (in.) | 24 |
| Maximum CFM | 500 |
| Voltage | 115 |
Overview | |
| Venting | Convertible w/ Filter Set |
| Controls | Slide |
| Number of Lights | 2 |
| Number of Fan Speeds | 3 |
| Noise level | Speed 1: 44 dB; Speed 2: 52 dB; Speed 3: 61.5 dB |
| Minimum Height | 27.75" (70 cm) |
| Maximum Height | 44.69" (114 cm) |
