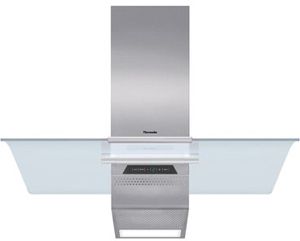

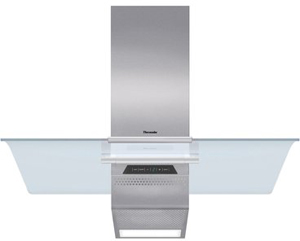

Thermador Masterpiece® Series 36" Glass Canopy Pivot Lift Wall Ventilation

Thermador

Model #:

HGEW36FS

Model #: HGEW36FS
3128
Thermador
$99,999.00

At a Glance

Product Dimensions 45"h x 35.5"w x 19.75"d

Thermador Masterpiece® Series 36" Glass Canopy Pivot Lift Wall Ventilation with 600 CFM and 3 fan speedsRead More

Call for Best Price

View Delivery & Pickup Options
Add Zip Code
Test-18AUG-CCC 90
AltaAILogo

Ask about this product?

Get a quick answer from AI!

This content was generated using AI from manufacturer content. To verify or get additional information, please contact customer service

Get to know this product.

Product Overview

Product Overview

  • Lower the unique glass canopy for greater capture area
  • 3 fan speeds plus 10 minute high-power operation mode
  • Filters are highly efficient at capturing grease
  • Powerfully quiet ventilation systems
  • Brushed stainless steel finish
  • Welded, polished seams for a flawless design
  • Premium electronic touch controls
  • Elegantly curved glass canopy
  • 600 CFM Integrated Blower included
  • Halogen lighting spotlights your best recipes
  • Dishwasher safe stainless-frame mesh filters
  • Dimmer lighting - for those hours after a late meal
Useful Documents
Installation Instructions
Product Manual
Specifications

General Specs

Width (in.)35.5
Height (in.)45
Duct Size (in.)6
Depth (in.)19.75
PositioningStationary
Product Weight (lbs.)57
Appliance Fit Width (in.)36
Maximum CFM600
Voltage120
Amp15
Frequency60

Construction

Exhaust:Ducted
Chimney:Adjustable
Ductwork Type:Vertical

Dimensions

Shipping Weight:77
Depth, Chimney :11
Min Chimney Height:32.63
Min Height Above Cooktop:30

Display

Controls:Digital

General Features

Filter Type:1 Washable Grease Filter
Pollutant Removal:Externally Vented

Other

Watts:50
Considerations:Use this unit only in the manner intended by the manufacturer.
Number of Lights:2
Settings:1
Air Mover Type(s):Double Inlet Centrifugal Blower
Air Mover(s) Speed:4
Number of Air Movers:1

Styling

Design:Glass Canopy Chimney Style
