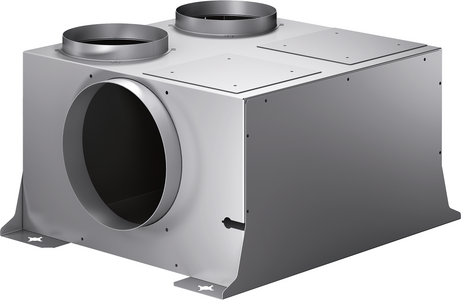

Gaggenau 200 Series Inline Blower

The remote blower offers maximum air output for downdraft and ceiling ventilation as well as motor less hoods. Installation in a separate room allows for a reduced noise level in the kitchen.

Main Facts

• Maximum output for downdraft ventilation and motor less hoods
• Installation in a separate room allows lower noise level in the kitchen
• To be combined with motor less hoods or downdrafts

Output

• Performance output level 3/4:
• Air output according to EN 61591.
• Sound power and sound pressure depending on built-in situation.
• For the characteristics of each output level with/without intensive mode please refer to the table with the respective motor less ventilation products.

Features

• Metal housing, zinc-plated.
• Pipe connections air intake: 1 x ø 8" round duct, 4 x ø 6" duct.
• Pipe connection pressure side: 1 x ø 8" round duct.
• Spare cover to close an air intake included with the blower.

Rating

• Fan output 730 W.
• Connecting cable 41 1/3"
